Knauf Diamant and Sapphire: Reliable gypsum boards for modern construction projects

Knaufdiamant

Purpose and features of the product

Knauf Diamant , solid and highly sustainable gypsum plates (TYPE GKFI; DFH2Ir) and premium quality is designed for dry construction. It is produced in 12.5mm and 15mm thick and selected by:

Firefighting: A2-S1 on EN13501-1, D0 is a fixed fire resistance - that is, it is a single non-burning, non-explosion.

Acoustic performance: High surface stiffness and elastic dry sound helps reduce sound transfer due to core.

Mechanical sustainability : Understanding, the 12.5mm board, which is extensive than 300N tension resistance, is higher in 15mm.

Prevention of moisture: Both barking and basic nucleus are wet absorption ≤10% because it is in hydrophobic processing; It is also in certain wet conditions - for example, toilets, shower - allows us to use.

Thermal Features: Thermal conductivity is at λ = 0.27w / (m · k); This contributes to the efficiency of stability and dry construction systems in the domestic environment.

Applied areas and advantage

Useful field:
Suitable for roofing, hanging ceilings, dynamic wall systems, interior decor and metal / wooden carcass.

Location:
In moderate moisture conditions - garden houses, bathrooms, kitchen, can be applied in places such as toilets (moisture percentage ≤70%).

Strong structural capabilities:
Solid surface, high gratitude and weight transport capability is ideal for solid carcass structures.

Ease of installation:
Wrapped edges and Knauf Brio mounting composition with screws allows complex image structures to continue aesthetics.

Standards and Certificates

CE tab: EPD certified in accordance with EN 520 and DIN 18180 standards.

Installation and storage

• The dry, the temperature should be kept in places between + 5-50 ° C.

• In the assembly Knauf Brio screws are used; In the wooden carcass, nails or people are applied.

• The edges of the cut parts are fortified and fixed with screws; In systemic applications while Knauf The system instructions of the system must be based.

Knaufsapfir

General information about the product

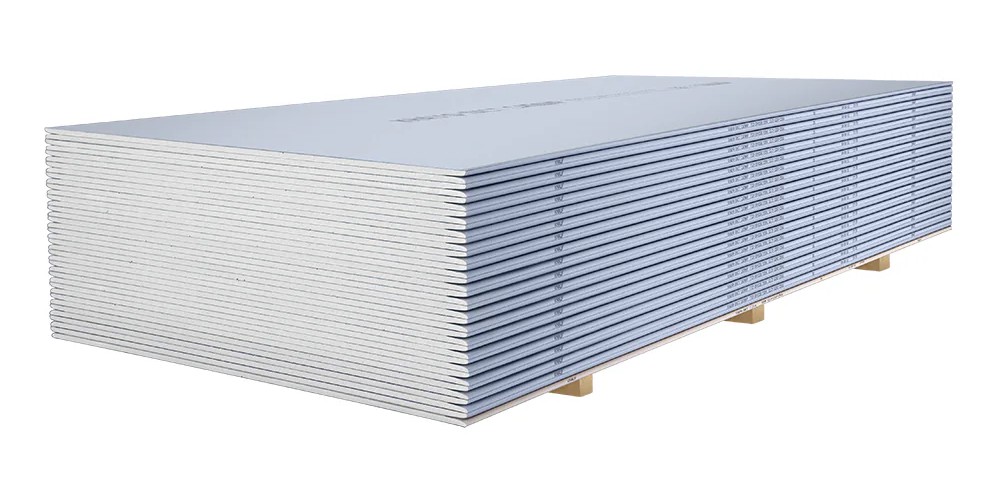

Knauf Sapphire (DFH3IR) is a special, high-sustainable gypsum board - wet and mechanical impact is produced for risky environments. Size settings: 1200 × 2500mm, thickness is 12.5mm and weight ~ 37.5kg / pallet. DFH3IR - Highness resistance is high.

Technical indicators and features

Moisture resistance: There is a stronger moisture resistance with hydrophobic design (like up to 85% endurance in humid places).

Mechanical Sustainability: Provides high traction and compression resistance - is suitable for application in intensive moves.

Fire Tolerance: It has stability against the fire, used in various applications in accordance with the DFH (x) Standard.

Longitudinal and transverse screw detainability excess: Provides longevity performance in carcass-septic systems

Application fields

All kinds of moist environments: Baths, shower rooms, kitchen, sanitary rooms - an advantage for moist environments.

Highly used zones: Airlines, kitchens, catering facilities, schools, hospitals, etc. Mechanical effects can be applied in places with high.

Construction and renovation projects: Ideal choice for structural systems where humidity and mechanical impact factors are densely.

Installation and operating instructions

Mounting: Knauf Designed for DFH3IR systems; Along with the standard screw and adhesives during installation, appropriate enemies should be used for humid environments.

Storage: Dry, high temperatures should be kept in terms of + 5-35 ° C. There are no cracks and deformities.

Quality, standards and certificates

Knauf Quality: Same factory production control and performance.

DIFH3IR DESCRIPTION: EN 520 and DFH3IR (German RS) - Strong standard against strong wet and mechanical effects.

CE and ecological icons: Regulated by the documents on the appropriate norm.

Knauf Diamant and Knauf Sapphire - Each is quality gypsum boards designed for different needs. Diamant If it is an ideal choice for interior projects with high resilience and fire resistance, Sapphire Suitable for public and technical places with moisture and intensive use.

Both products Knauf In accordance with the quality, it offers certified, long-lasting and easy-to-install solutions. The construction is a successful choice for those seeking reliability and functionality.
